FEATURES & APPLICATIONS
Features
- Triple-mode SDS rotary hammer (hammer drilling plus 2 gears for rotary-only drilling)
- Sturdy motor with high load rating for maximum reliability and electronic switch for precise hole-starting
- Quick-change "TE-C Click" chuck and user-friendly selector switch for high working comfort
- 360 degree side handle adjusts easily for preference or for use in tight spaces
- 20 years manufacturers warranty, 2 years no cost period, 1 month warranty on charged repairs
Applications
- Everyday hammer drilling in concrete, masonry and natural stone
- 2 gears for optimal drilling speed in steel, wood and plastics using the optional quick-release chuck
- Driving screws using the optional bit holder
- Reverse rotation is useful for removing stuck drill bits
PRODUCT INFORMATION

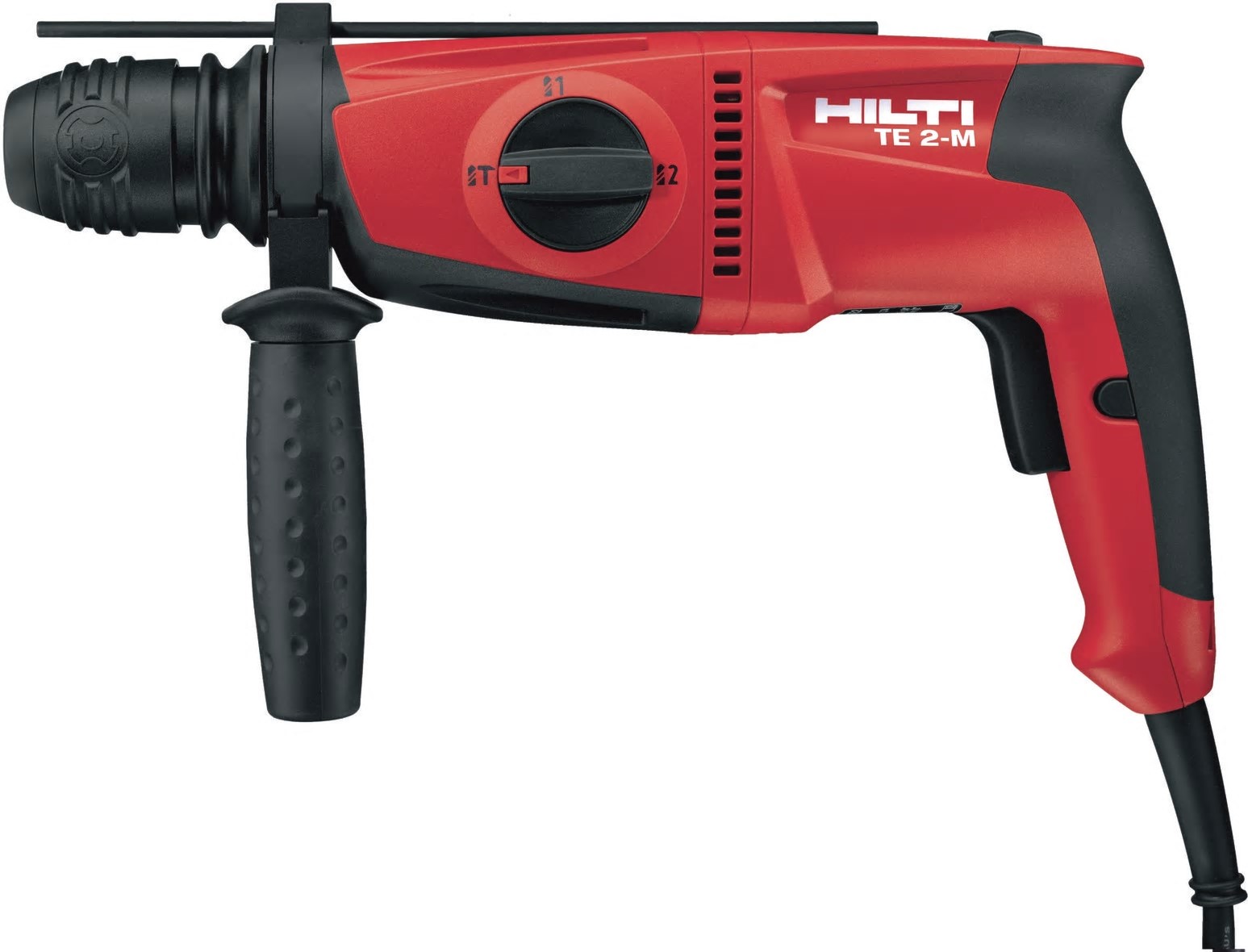

Rotary hammer TE 2-M 230V case
- Item Number: 228115
- # of items in Package: 1
TECHNICAL DATA
- Weight according to EPTA Procedure 01/2003: 2.7 kg
- Working mode: Hammer drilling, Drilling
- Hammer drilling diameter range: 4 - 22 mm
- Optimum hammer drilling range: 4 - 12 mm
- Single impact energy: 1.8 J
- Hammer drilling RPM: 1200 rpm
- Full hammering frequency: 4600 impacts/minute
- Functionality: Reverse mode, Depth gauge.
- Triaxial vibration value for hammer drilling into concrete (ah,HD): 13.5 m/s²
- A-weighted emission sound pressure level: 91 dB (A)
- Dimensions (LxWxH): 352 x 89 x 203 mm
